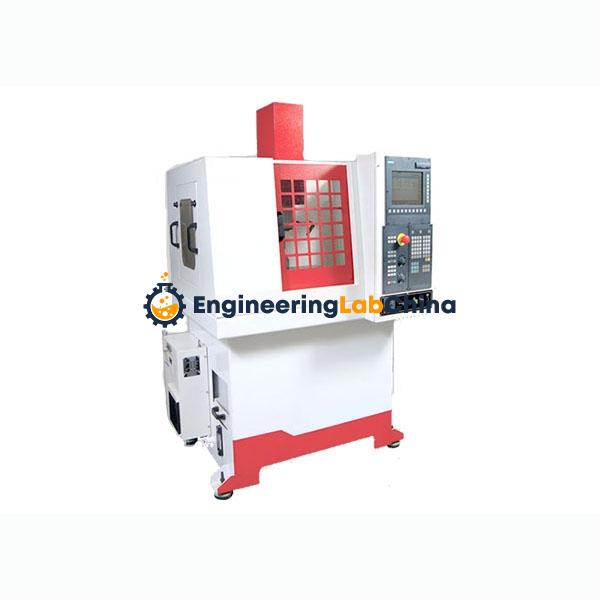

CNC Milling Machine

CNC Milling machine, computer numerically controlled: machines for the workshop

CNC Milling machine, computer numerically controlled: machines for the cnc engineering training workshop:
This machinery is easily housed in average-sized workshops and continues to be an excellent financial investment for low-volume metal production.
Excellent for use in a wide range of industrial machining procedures.
It's the ideal tool for use in an engineering lab workshop.
Numerous experiments in metal cutting are possible with CNC Milling machine.

Table:
Working space (X-axis x Y-axis) : (650mm X 400mm)
Capacity of workpiece mass : 300kg (uniform load)
Working surface configuration : (3xT-slots size 14 mm pitch 125 mm)

Capacity:
X-axis-travel (longitudinal movement of table): 500 mm
Y-axis travel (cross movement of saddle): 400 mm
Z-axis travel (vertical movement of spindle head) : 300 mm

Feedrate:
Rapid traverse rate : 48 m/min (X,Y,Z)
Feedrate : 30000 mm/min
Machine size:
Machine height: 2236 mm
Floor space: 1615 mm X 2040 mm
Mass of machine: Approx. 2000 kg

Controller:
Part program storage : 512kbyte
Registerable programs : 200
Operation panel : 10.4″ color LCD
I/O interface : RS-232C Interface
Controlled axis : 3-axis
Simultaneously controllable axis : 3-axis
High Response Velocity (HRV)
Rigid Tapping (M29)
Handwheel feed
Back ground editing
Extended part program editing
Power Source: 200-240VAC, 50-60Hz, 3- Phase
AI programming function: On screen selection of instructions with guidance allows simpler programming.
Minimum key strokes enables estimate of default value, optimal tool selection and choices of cutting conditions.
Programming in the NC language is also available with AI programming.
