Shrinkage Bar Mould Single

Shrinkage Bar Mould Single

Product Code: CHINAELABC2680064

Categories: Cement Testing Lab Equipment

Tags: Soundness, Shrinkage Bar Mould Single

3674

Download PDF Enquire Now
  • Description

Soundness - Shrinkage Bar Mould Single



Specification

For preparing specimens of 25 mm x 25 mm x 250 mm effective gauge length with inserted stainless steel reference studs for determining the soundness of Portland Cement by the autoclave test and potential alkali reactivity of cement-aggregate combination by mortar bar method.

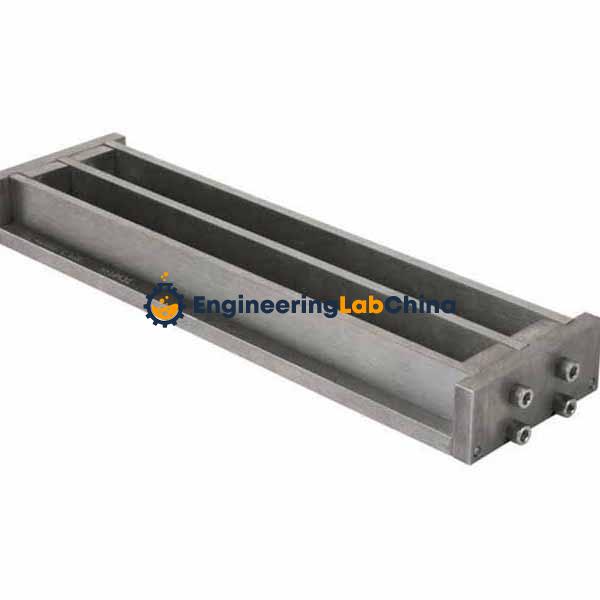

The mould consists of two side plates and two end plates assembled on a common base plate with screws and dowel pins. Two reference stud holders snugly fit into the mould and are held by screws through the end plates. Two knurled and threaded reference studs are fitted into these stud holders.
