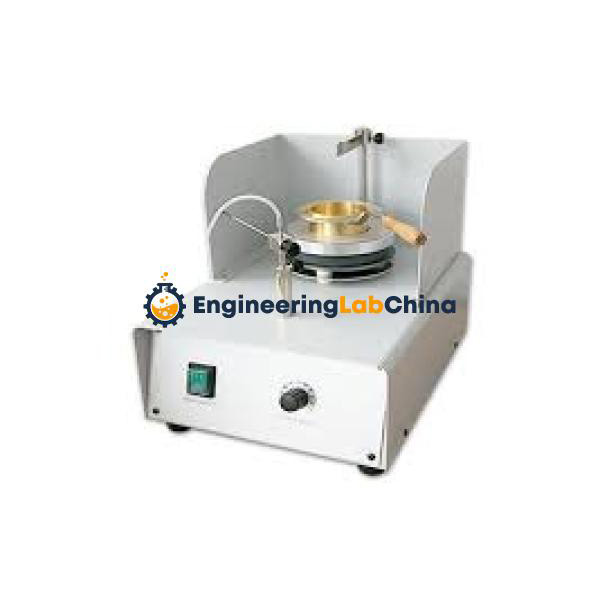

Cleveland Flash Point Apparatus

Cleveland Flash Point Apparatus

Key Specifications/Special Features:
This instrument petroleum products.
Determining flash and fire points, Cleveland open cup method and ASTM D92 standard test method for flash and fire points.
Applicable for all petroleum products with flash points above 79? and below 400? except fuel oils.

Main technical features:
Adapts special heating furnace to ensure the safety of test
The heating power is continuously adjustable
The instrument adapts desktop structure
The stainless steel working table and furnace shell make it beautiful and elegant
The instrument is fully self-contained complete
The operator can do determination as long as connecting with coal gas or other civil gas
It can meet requirements of test
It equipped with flame extinguishing cover which accords with requirements of tests.

Main technical specifications and parameters:
Ambient temperature: (-10 – 50)?
Power supply: AC (220 ±10%)V, 50Hz
Heating device: Quartz tube furnace heating, no naked fire, explosion prevented
The power is adjustable from 0W to 600W
Test flame applicator: applies the test flame automatically
Thermometer: (-6 – 400)°C
It is the same as thermometer ASTM 11C.
Relative humidity: ≤85%
Overall power consumption: ≤650W
Overall dimensions: 350mm*290mm*350mm (thermometer is not included)

Igniting Device:
Ignition Source: coal gas (or civil gas, the same below)
Flame diameter is 3.2mm – 4.8mm
