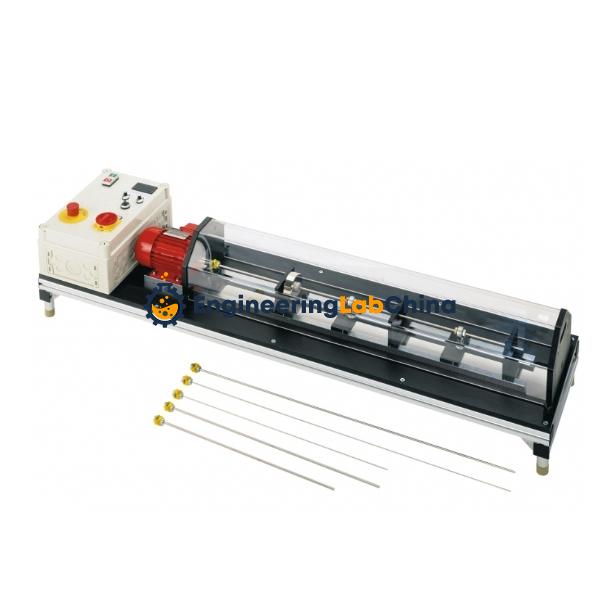

Whirling of Shaft Apparatus

Whirling of Shaft Apparatus

Product Code: CHINAELABC2610014

Categories: Dynamics of Machine Lab Equipment

Tags: Whirling of Shaft Apparatus

2951

Download PDF Enquire Now
  • Description

Whirling of Shaft Apparatus



Specification

FEATURES:
Experimental unit on critical rotational speeds on simply loaded and continuous shafts
6 rotor shafts made of high-strength steel
Motor: adjustable speed, digitally display, adjustment with potentiometers, 2 rotational speeds can be preselected, can be switched as required
Mode shapes of continuous rotor shafts
Transparent protective cover enables the experiment to be optimally observed
Variation of bearing spacing and shaft diameter

SPECIFICATION:
Rotor shafts made of steel :
Diameter: 3mm, 6mm, 7mm
Length: 600mm, 900mm

Rotor disc made of steel :
Diameter: 80mm
Weight: 1kg

Motor :
Power: 0,37kW
Speed: 0…6000min-1

Speed electronically controlled
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
